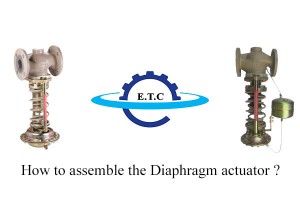

How to assemble the Diaphragm actuator





How to assemble the Diaphragm actuator?

As you know, the actuator of pressure control valves has specific long life or incinerate or disrupt in the effect of empty condensation.so, We have to change the diaphragm actuator. Sometimes, our colleagues install diaphragm actuator wrongly. So, this academic video issue for showing how to assemble diaphragm actuator? At first, we should connect the actuator shaft to engineering vices. Then set the plate in upper and downer position. Then set the diaphragm in the middle of plate. Then close the washer and the nut. Be careful the inner code of diaphragm should be upper in position and the Manjeet material is back of the plate.

Finally, washer, Nut and bolt should be fix surrounded of actuator correctly.

I hope that you can use this video usefully.

How to assemble the Diaphragm actuator ?
