Magnetic Level Switch Type MLS 20-08

products

Products of eyvaz company

1- Working Range:

Magnetic Level switch type MLS 20--08 is useful device to control level of liquids. Its working attributes are : 16/40bar nominal pressure, screwed or flanged connection , 150 °C or 302° F working temperature . this device is used in water, fuel , acid, detractor tanks and also condensate, under pressure caldrons ,water treatment systems and etc.

Function of this device is based on electro-magnetic. with change of liquid level, the floater ball move up and down (vertically) on the device rod. This movement stimulates the sensor which are improvised in slightly height, By this way ON-OFF commands are sent to the electrical circuits for controlling electrical equipment such as Electro-pumps, solenoid valve by panel or without it . All parts inside liquid are made of stainless steel and have durable life. This instrument is thoroughly sealed against penetration of water and has possibility to install more sensor on its rod for using alarms. It is mounted from side or above of reservoirs and can be equipped with more than one floater to get more safety factor and changes activity of switches.

In cases the tanks are mounted underground or in specific required conditions, the device is installed on topside of tanks by the flange connection. To avoid rod turbulence liquid damage, a guide can be installed on the bottom of reservoir (In cases which reservoir height is more than 200mm). A chamber can be mounted on take then MLS 20-08 is set on this chamber when it is installed from side of reservoir by two nozzles .

I to P Positioner Type 3730-1 Samson

I TO P positioner is used for controlling the valve with Type NCV 24-11 by input flow. .

Analog Thermostatic Sensor TS Type 22-31

Analog Thermostatic Sensor TS Type 22-31 works based on physical rule of liquid expansion. Temperature sensor of this device is placed inside the tank….

Manual Thermostatic Sensor TS Type 22-41

the safe operation of unit is guaranteed if only it is installed, started up and maintained by qualified and skilled person, and most importantly, based….

Magnetic Sensor for Magnetic Level Gauge Type MS15

Magnetic Sensor type MS15 install next to the Level Gauge. When the floater goes up exist magnetic field and finally change to the micro switch..

Magnetic Sensor for Level Gauge Sensor MS15-Ex

Magnetic Sensor MS15EX install next to the Level Gauge. When the floater goes up exist magnetic field and finally change to the Micro Switch..

Thermodynamic Steam Trap With Bimetallic Air Vent Type TDS 30-62

The thermodynamic trap is an extremely robust steam trap with a simple mode of operation. The trap operates by means of the dynamic effect of flash steam….

Stainlesssteel Vacuum Breaker Type SVB 40-10

In air and compressed gasses system, humidity of air and gases is usually converted to condensate and flocked in the system. This condensate causes to….

Brass Vacuum Breaker type BVB 40-16

In liquid line, vacuum sometimes is occured. This event causes to appropriate movement of liquid and decrease efficiency of system or during draining….

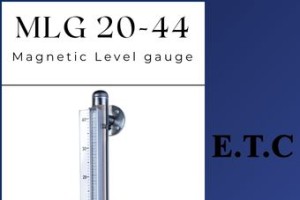

Magnetic Level Gauge MLG 20-44
